Spin coater

5. ASC-300 - 12" Spin coater
ㆍ  Programmable 12" Spin Coater
ㆍ  Speed: 0 - 5,000 rpm
Accuracy: ±1 rpm
ㆍ  Vacuum pump, chuck (1ea) 무상 제공
ㆍ  100 recipes with 100 ramps
ㆍ  Compact size: 613 W x 463 D x 306 H mm

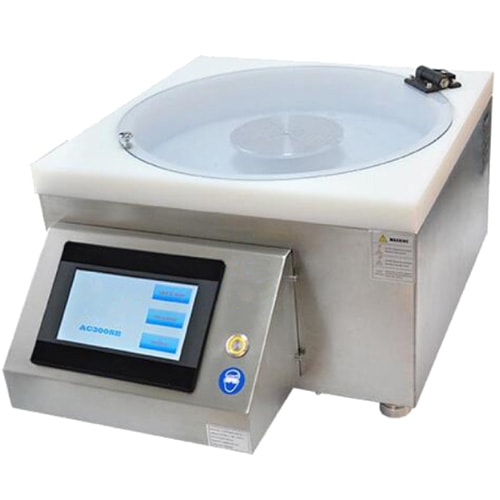

ASC-300 - 12" Spin Coater
Product Features
7" Touch Screen
 - Programmable Spin Coater.
 - Speed: 0 - 5,000 rpm (Accuracy: ±1 rpm).
 - Vacuum pump, chuck (1ea) 무상 제공.
 - Sample size: 1 cm to 300 mm round (12").
 - 100 recipes with 100 ramps.
 - Standard HDPE spin bowl
   (Option: Teflon coated stainless steel spin bowl liner).
 - 7" touch screen.
 - Industrial grade motor system and PLC controller.
 - Compact size: 463 W x 613 D x 306 H mm.
ASC-300 7 inch touch screen.jpg

Features
ASC-300 Borad Chemical Compatibility.jpg
 Broad Chemical Compatibility
HDPE spin bowl offers great chemical compatibility.
PTFE spin bowl is also available for upgrade at low cost.
With polymer spin bowl, it becomes so much easier to clean after each spin coating.
No more sticky color residues!
ASC-300 Customizable Multi step Spin Program.jpg
 Customizable Multi-step Spin Program
 - Up to 100 user definable spin programs, up to 100 spin steps for each program, and up to 5 spin parameters for each spin step can be saved on board.
- Each spin program can be saved in both letters and numbers.
ASC-300 Superior User Experience.jpg
 Superior User Experience
A 7 inch Color Grahpic Display makes it comfortable to read and monitor real-time spin status.
And touch screen input interface is convenience for your mult-step program editing.
ASC-300 Standard High Performance Drive.jpg
 Standard High Performance Drive
 Our spin coaters have powerful 400 watts servo motor systems that are used in high-end tracks and CNC machines.
These systems are designed for ultimate reliability and years of trouble-free maintenace.
STANDARD FEATURE for our spin coater!

Specifications
Model RPM
 Adj.		 RPM
  Range		 Acceleration Recipe No. Ramps for recipe Drain Sample size Dimensions (mm)
ASC-80 1 200 - 10000 100 - 10000 5 5 N/A < 4" 210 x 250 x 200
ASC-100 100 - 12000 100 - 30000 10 10 16 mm < 6" 359 x 256 x 258
ASC-200 20 - 10000 0 - 50000 100 100 16 mm < 8" 433 x 306 x 306
ASC-300 0 - 5000 0 - 10000 100 100 16 mm < 12" 613 x 463 x 306
